XRNT High Voltage Current-Limiting Fuse

Product ID：Medium Voltage Equipment
Whatsapp & Wechat：+8613868719385
Phone: +8613868719385
Tel: +86 577 27880251
E-mail: info@cyawit.com
FEEDBACK

Product Details

● lt can be used in indoor system of 50HZ and rated voltage of 3.6KV， 7.2KV， 12KV， 24KV，40.5KV;Used together with other switch facilities such as loading swithes， vacuum contactors，it can protect electric transformers and other electric facilities against overloading or circuit break. It is also a necessary accessory for high-voltage switchbox，circular circuit cabinet，high / Low voltage top-loading transformer substation.

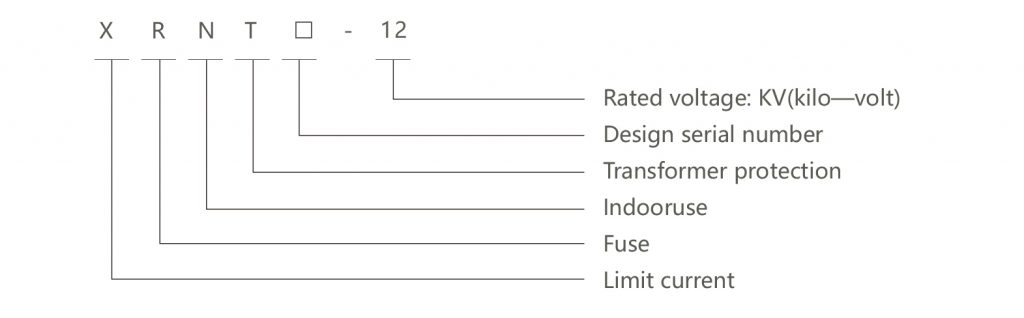

Selection

Technical data

Model/Size	Rated Voltage(KV)	Rated Current(A)	Rated Drop-Out Current	Overall Dimension
Model/Size	Rated Voltage(KV)	Rated Current(A)	Rated Drop-Out Current	φD	L(mm)
XRNT1	3.6	6.3,10,16,20,25,31.5,40	31.5	51	192
XRNT1	7.2	6.3,10,16,20,25,31.5,40,50,63	31.5	51	292
XRNT1	7.2	80,100,125,160	31.5	76	292
XRNT1	12	6.3,10,16,20,25,31.5,40	31.5	51	292
XRNT1	12	50,63,71,80,100	31.5	76	292
XRNT1	12	125	31.5	76	292
XRNT1	12	160,200	31.5	88	292
XRNT1	24	6.3,10,16,20,25,31.5,40	31.5	51	442
XRNT1	24	50,63,71,80,100	31.5	76	442
XRNT1	24	125	31.5	76	442
XRNT1	24	160	31.5	88	442
XRNT1	40.5	3.15,6.3,10,16,20,25	31.5	51	537
XRNT1	40.5	31.5,40	31.5	76	537
XRNT1	40.5	63	31.5	88	537
